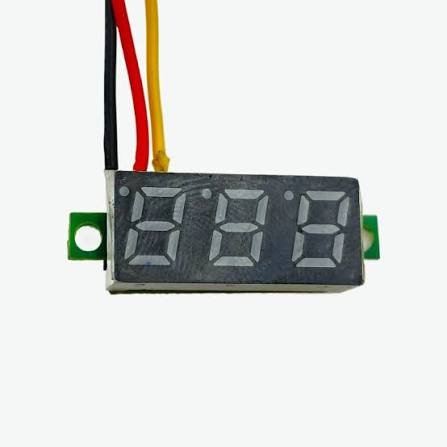

Mini 0.28 inch 3 wire digital dc voltmeter

0 reviews | Write a review
Rs: 220 /- PKR
Availability: 1
Brand: Circuit PK
Product SKU: CKT-484725
− +

Add to Cart

OR

Sepcifications

The mini 0.28-inch 3-wire digital DC voltmeter is an ultra-compact, lightweight electronic module designed to measure and monitor DC voltages from 0V to 100V.
Unlike standard 2-wire variants that are powered directly by the source they measure, the 3-wire system isolates its own operating power supply from the test probe.
This specialized design allows the unit to accurately track voltages all the way down to 0V without turning off

Key Technical Specifications
Measurement Range: DC 0V – 100V
Operating Voltage (Power Input): DC 4.0V – 30V (or up to 40V depending on the exact manufacturer)
Display: 3-digit, 7-segment 0.28-inch LED screen
Available LED Colors: Red, Blue, Green, Yellow, and White
Current Consumption: Very low, typically <20mA to 30mAAccuracy: ±1% to 3% deviation
Refresh Rate: Approximately 200ms to 500ms per update
Auto-Decimal Feature: Automatically adjusts precision. Displays two decimal places below 10V (e.g., 5.45V) and one decimal place above 10V (e.g., 24.5V).
Safety Features: Built-in reverse connection protection (prevents burning if the power wires are switched).
