Raspberry Pi 5 4GB

0 reviews
Rs: 27500 /- PKR
Availability: 1
Brand: Circuit PK
Product SKU: ckt-95054
− +

Add to Cart

Sepcifications

Raspberry Pi 5 version equipped with 4 GB RAM . The fifth version of the popular raspberry has two microHDMI connectors, two USB 3.0 connectors and two USB 2.0 connectors, a USB C power connector, and two 4-line MIPI DSI / CSI camera / display connectors , a PCI Express 2.0 connector, a fan connector, a connector UART and RTC battery, as well as a power button . The board also has dual-band WiFi 2.4 GHz and 5 GHz, Bluetooth 5 BLE and a 1000 Mb/s Ethernet port with the possibility of powering via PoE.

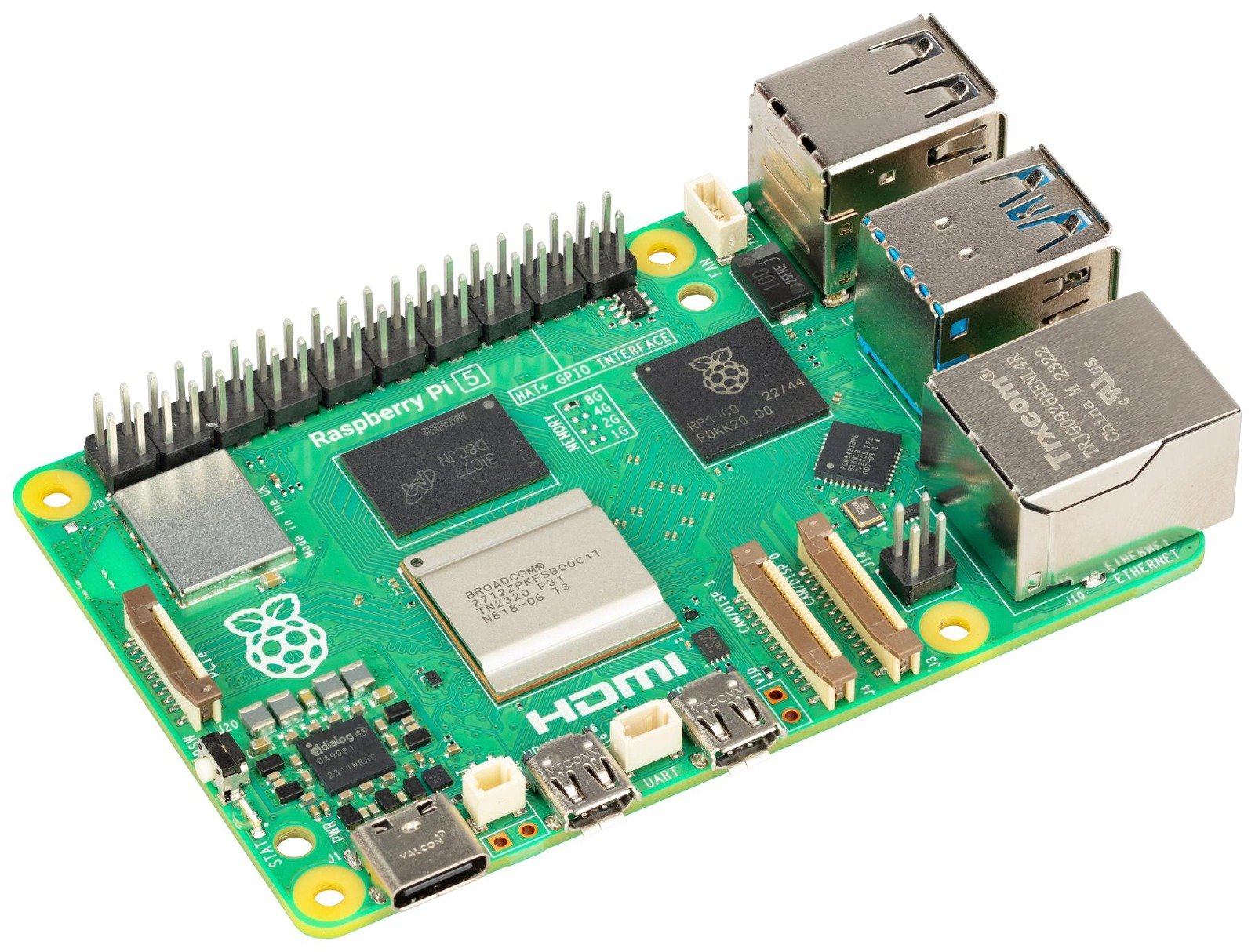

  1. Model designation
  2. Broadcom BCM2712 processor
  3. PCI Express 2.0 interface
  4. ON/OFF button
  5. Power management system
  6. Active cooling/radiator mounting holes
  7. RTC battery connector
  8. UART connector
  9. Raspberry Pi RP1 I/O controller
  10. Fan connector
  11. Ethernet and USB ports (inverted from Raspberry Pi 4)
  12. PoE HAT connector
  13. 2x 4-line MIPI DSI/CSI connectors
