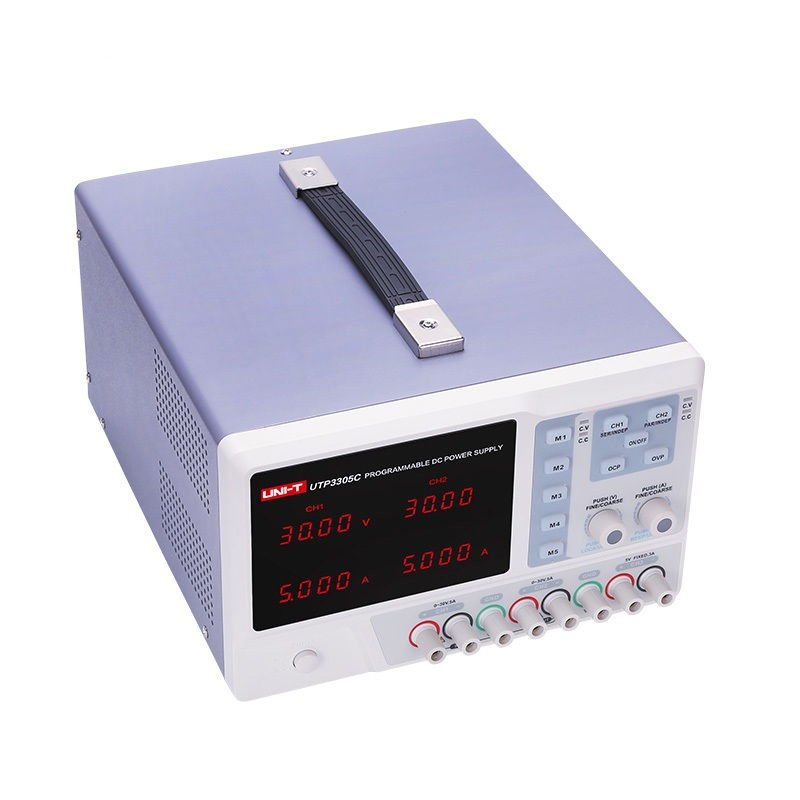

UNI T Programmable DC Power Supply UTP3305C

Sepcifications

Output voltage: 0~30V (CH1/CH2)

Output current: 0~5A (CH1/CH2)

Output power: 315W

Load regulation voltage: <0.01%+5mV

Load regulation Current: <0.1%+10mA

Line regulation voltage: <0.01%+3mV

Line regulation current: <0.1%+3mA

Resolution voltage: 10mV

Resolution current: 1mA

Accuracy (25℃±5℃) voltage: <0.5%+20mV

Accuracy (25℃±5℃) current: <0.5%+10mA

Ripple (20Hz~20MHz) voltage: ≤2mVrms

Ripple (20Hz~20MHz) current: ≤3mArms

Output temperature coefficient voltage: ≤150ppm

Output temperature coefficient current: ≤150ppm

Voltage rise delay: ≤100ms (10% rated load)

Parallel/Series load regulation: ≤0.1%+0.1V

Output temperature coefficient voltage:
