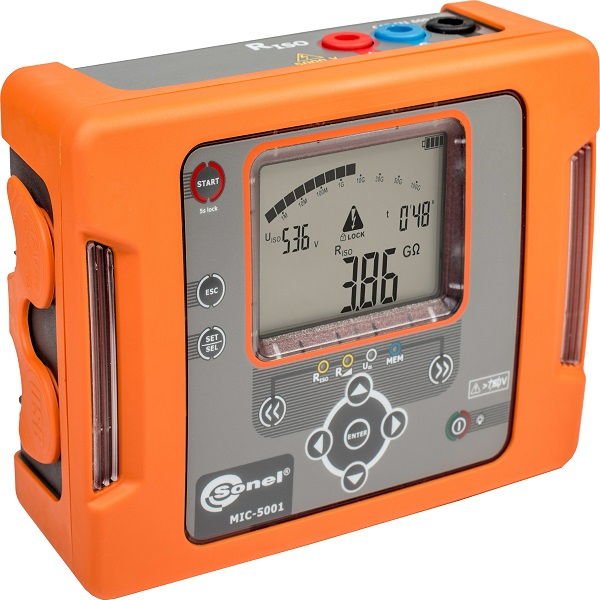

Insulation Resistance Meter Sonel MIC 5001

Sepcifications

1. Measurement to 5 TΩ

2. Measuring voltage selectable from 50 V to 500 V range in 50 V steps, and from 500 V to 5000

V range in 100 V steps

3. Continuous indication of insulation resistance or leakage current

4. Automatic discharge of stored charge due to the capacitance of tested object after the

insulation resistance measurement

5. Audio beeps every ve seconds to alert user test is proceeding, and to get time characteristics

6. Measured test times of T1, T2, and T3 for measuring Absorption Coecient, Dielectric

Absorption Ratio DAR. and Polarization Index PI

7. Continuous display of test voltage during the measurement

8. Protection against measuring live objects

9. Two and three-lead measurement method

10. Ramp Test Insulation resistance measurement

11. Measurement of breakdown voltage with increments up to 1 kV / s

12. Measurement of alternating and direct voltages from 0 V to 750 V

13. 990 cells of memory (11880 records) to record results

14. Data transfer to PC via USB cable

15. Built-in rechargeable battery pack

16. Meets the requirements of the EN 61557 standard

17. Charge from optional car lighter (12 V) socket accessory
