Due to currency devaluation, prices are subjected to change without prior notice. Please confirm the price before placing your order

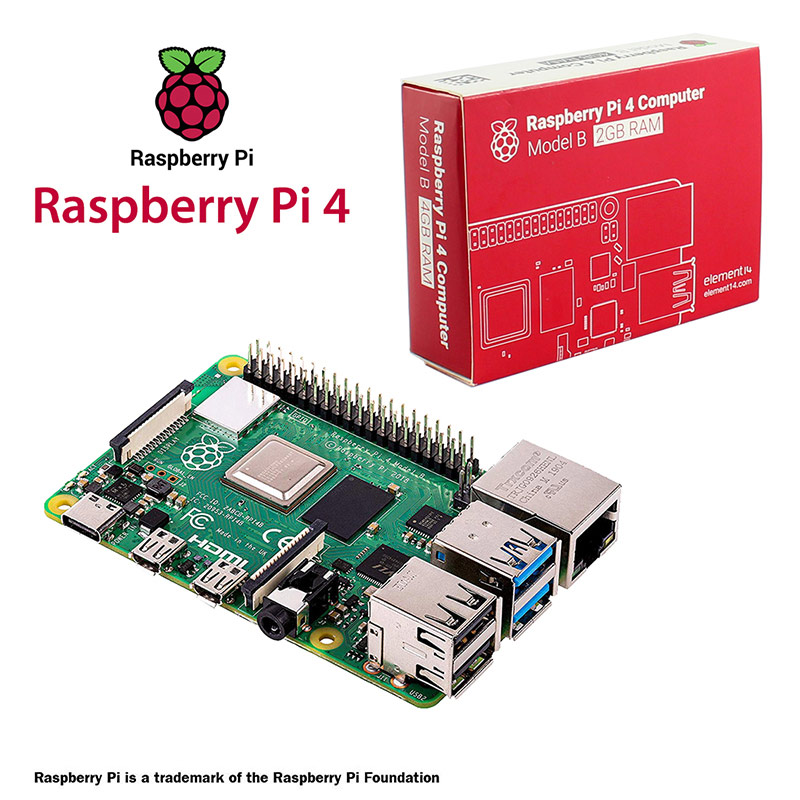

Raspberry Pi 4 Model B 2GB

0 reviews | Write a review

Rs: 22500 /- PKR

Availability: 1

Brand: Circuit PK

Product SKU: CKT-69698

Sepcifications

The Raspberry Pi 4 Model B (2GB RAM) is a versatile, credit-card-sized single-board computer featuring
a 1.5GHz quad-core ARM Cortex-A72 CPU, dual 4K micro-HDMI ports, Gigabit Ethernet, dual-band Wi-Fi, and
USB 3.0. Ideal for lightweight desktop use, smart home hubs, or media centers,
it requires a 15W USB-C power supply.

Key Features and Technical Specifications:
Processor: Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz.
RAM: 2GB LPDDR4-3200 SDRAM.
Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless LAN, Bluetooth 5.0, Gigabit Ethernet.
Ports: 2 x USB 3.0 ports, 2 x USB 2.0 ports, 2 x micro-HDMI ports (up to 4Kp60 supported).
Video/Audio: H.265 decode (4kp60), H.264 decode (1080p60), OpenGL ES 3.0 graphics.
GPIO: 40-pin GPIO header, fully backward compatible.
Power: 5V/3A DC required via USB-C or GPIO.

Description
Reviews (1)

1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
Gigabit Ethernet
2 USB 3.0 ports; 2 USB 2.0 ports.
Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
2 × micro-HDMI® ports (up to 4kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
OpenGL ES 3.1, Vulkan 1.0
Micro-SD card slot for loading operating system and data storage
5V DC via USB-C connector (minimum 3A*)
5V DC via GPIO header (minimum 3A*)
Power over Ethernet (PoE) enabled (requires separate PoE HAT)
Operating temperature: 0 – 50 degrees C ambient
A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.
