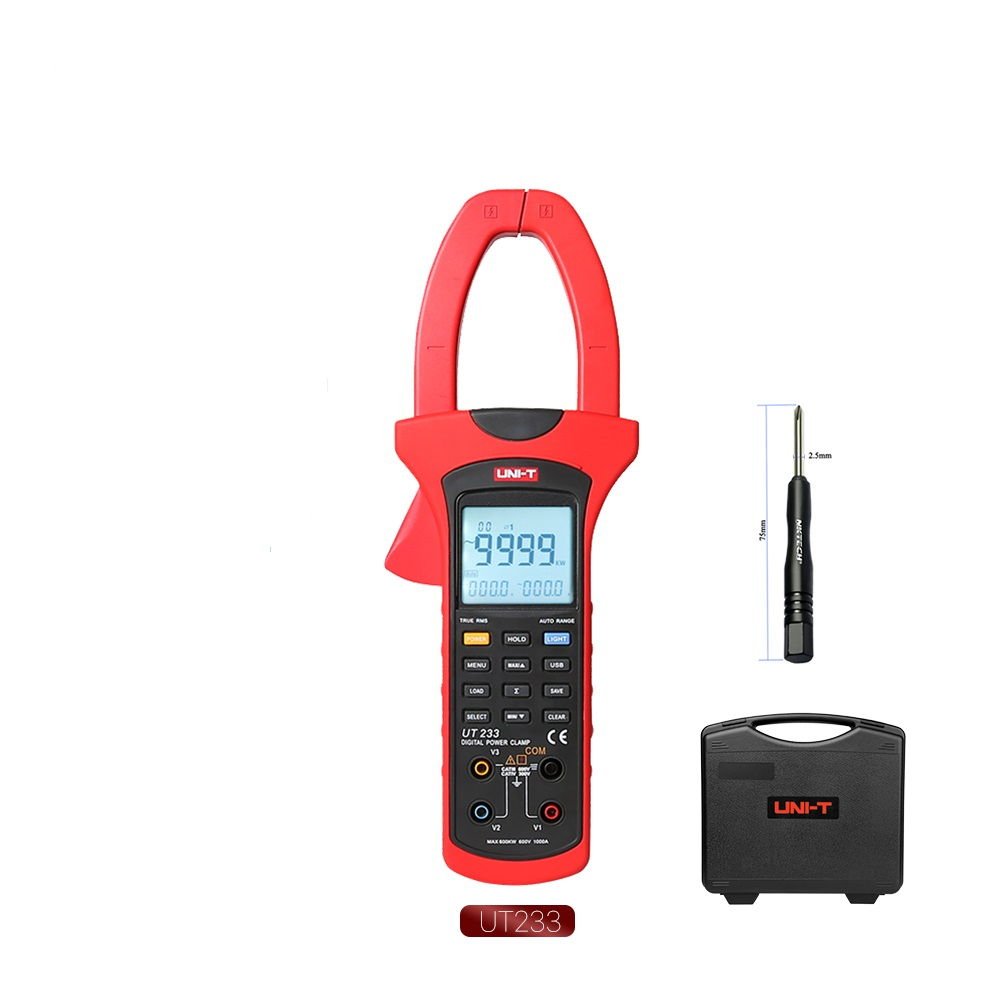

UNI T UT233 Digital Power Clamp Meter

0 reviews | Write a review

Rs: 78000 /- PKR

Availability: 1

Brand: Circuit Pk

Product SKU: CKT-1367

Sepcifications

1. AC Current (A): 40A/100A/400A/1000A ±(2%+5)

2. AC Voltage (V): 15V/100V/300V/600V ±(1.2%+5)

3. Frequency (Hz): 20Hz~500Hz

4. Active Power (W): 0.01KW-600KW ±(3%+5)

5. Apparent Power (VA): 0.01KVA~600KVA ±(4%+5)

6. Reactive Power (VAr): 0.01KVAr~600KVAr ±(4%+5)

7. Power Factor: 0.3~1 ±(0.02%+2)

8. Phase Angle (°): 0°~360°±1°

9. Active Energy (Wh): 1~9999KWh ±(3%+2)

10. Display Count: 10000

11. Auto Range: Yes

12. Jaw Capacity: 50mm

13. True RMS: AC Voltage/AC Current: Yes

14. Auto Power Off: Yes

15. Low Battery Indication: Yes

16. Data Hold: Yes

17. MAX/MIN: Yes

18. Data Logging: 99

19. USB Interface: Yes

20. LCD Backlight: Yes

21. Analogue Bar Graph: 51

22. Full Icon Display: Yes

23. Single-Phrase 2-Wires: Yes

24. 3-Phrase 3-Wires: Yes

25. 3-Phrase 4-Wires: Yes

Description
Reviews (1)

UNI T UT233 Digital Power Clamp Meter is a smart, portable, secure power and harmonic clamp meter, with digital ammeter and power meter features. This tong tester UT-233 will calculate voltage, current, active / reactive power, power factor, angle of phase and more. This best optical clamping multimeter can be used in power supply / equipment, circuit measurement and grid control efficiency.
