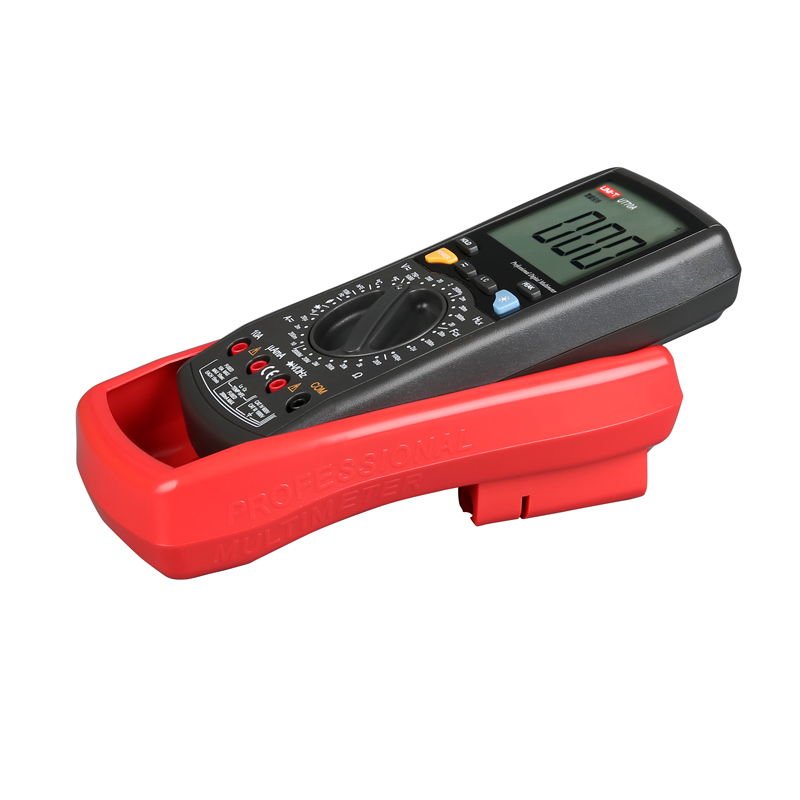

UNI T Multi Purpose Digital Multimeter UT70A

0 reviews | Write a review

Rs: 14800 /- PKR

Availability: 1

Brand: Circuit Pk

Product SKU: CKT-1302

Sepcifications

1. DC Voltage: 200mV / 2V / 20V / 200V / 1000V

2. DC voltage accuracy: +/- (0.5%+1)

3. AC Voltage: 200mV / 2V / 20V / 200V / 750V

4. AC voltage accuracy: +/- (0.8%+3)

5. DC Current: 20µA / 2mA / 200mA / 10A

6. DC current accuracy: +/- (0.8%+1)

7. AC Current: 20µA / 2mA / 200mA / 10A

8. AC current accuracy: +/- (1%+3)

9. Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm / 2000 MOhm

10. Resistance accuracy: +/- (0.8%+1)

11. Capacitance: 20nF / 200nF / 2uF / 100uF

12. Capacitance accuracy: +/- (2.5%+5)

13. Frequency: 2kHz - 10MHz (auto)

14. Frequency accuracy: +/- (0.1%+3)

15. Inductance: 2mH / 20mH / 200mH / 20H

16. Inductance accuracy: +/- (2%+10)

17. Temperature: from -40 to +1000°C, from -40 to +1832°F

18. Temperature accuracy: +/-1%+3 (°C), +/-1%+4 (°F)

19. TTL Logic Test: (High > 2.0V, Low < 0.8V)

20. Power: 9V bat.

21. Product size: 195 x 90 x 40mm

22. Product weight: 620g

Description
Reviews (1)

The UNI-T UT70A meter is a handheld, advanced-design optical multimeter. The UT-70A professional multimeter has several features, a wide display screen and good output at a far lower price than a multimeter of this standard you would expect to pay for. This multimeter pocket will calculate tension & current (AC & DC), resistance, capacitance, inductance, frequency.
